Panaray® 402® Series IV

Panaray 402 Series IV

Recommended retail price

Overview

The Panaray® 402® installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array® design, with wide 120° x 60° coverage, can reduce the number of required loudspeakers, while the 73-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

Features

Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity

4 x Bose® 4.5-inch full-range drivers for legendary reliability

120° x 60° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required

73 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels

119 dB Peak SPL for sound-reinforcement and foreground music

Rugged, lightweight enclosure with threaded inserts for easy installations

Weather-Rated Design for indoor or outdoor installations

Requires Active Equalization

Applications

  • Auditoriums
  • Gymnasiums
  • Restaurants and bars
  • Fitness clubs
  • Theme parks
  • Outdoor event venues

Specs

Technical Summary

Frequency Range (-10 dB)
73 Hz - 15 kHz

Nominal Coverage Pattern (H x V)
120° H x 60° V

Long-Term Power Handling
Bose extended-lifecycle test⁴: 120 W
AES transducer test⁵: 150 W

Power Handling, Peak
Bose extended-lifecycle test⁴: 480 W
AES transducer test⁵: 600 W

Sensitivity (SPL / 1 W @ 1 m)
91 dB SPL

Calculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 112 dB
AES transducer test⁵: 113 dB

Calculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 118 dB
AES transducer test⁵: 119 dB

Nominal Impedance
8 Ω

Mechanical Diagrams

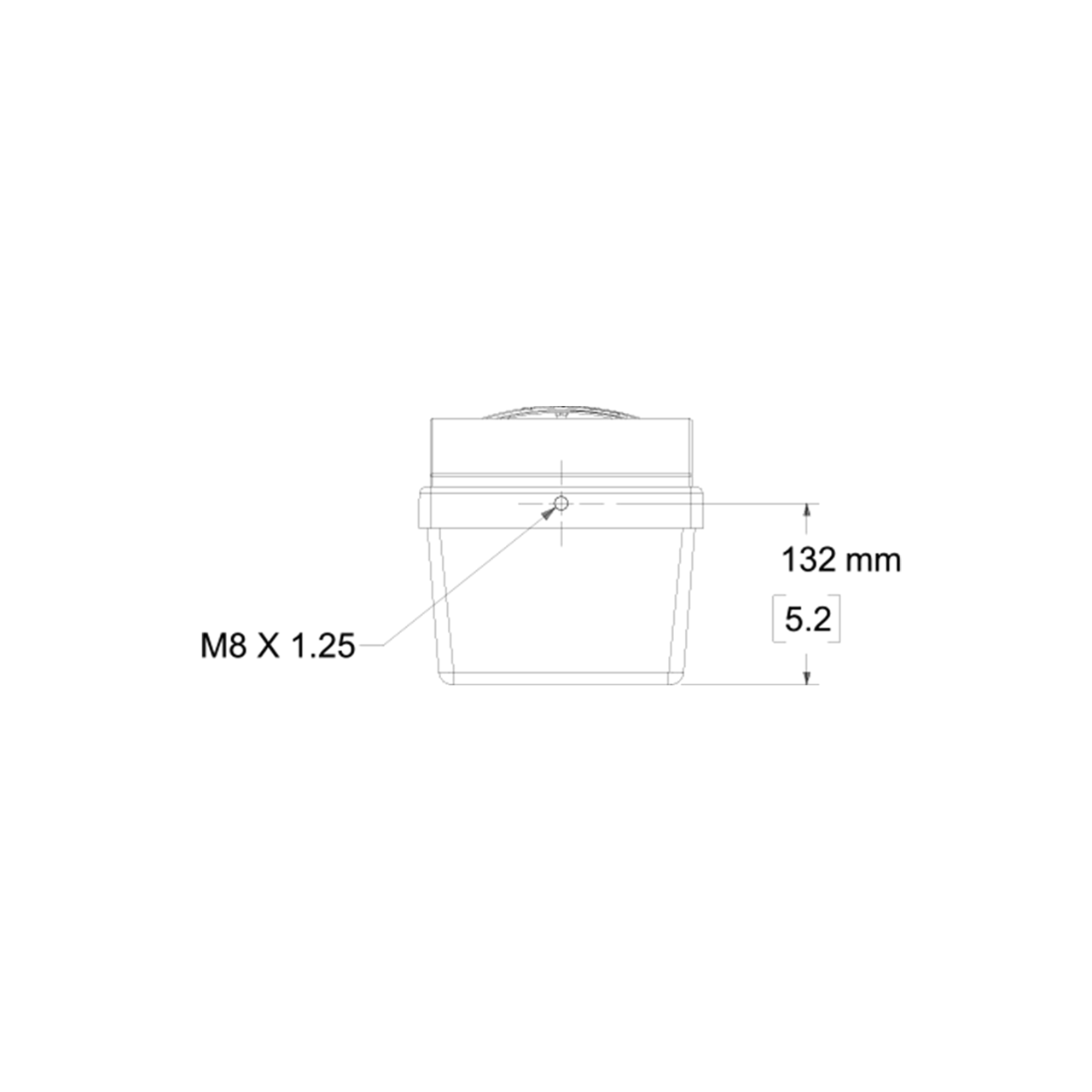

Top View

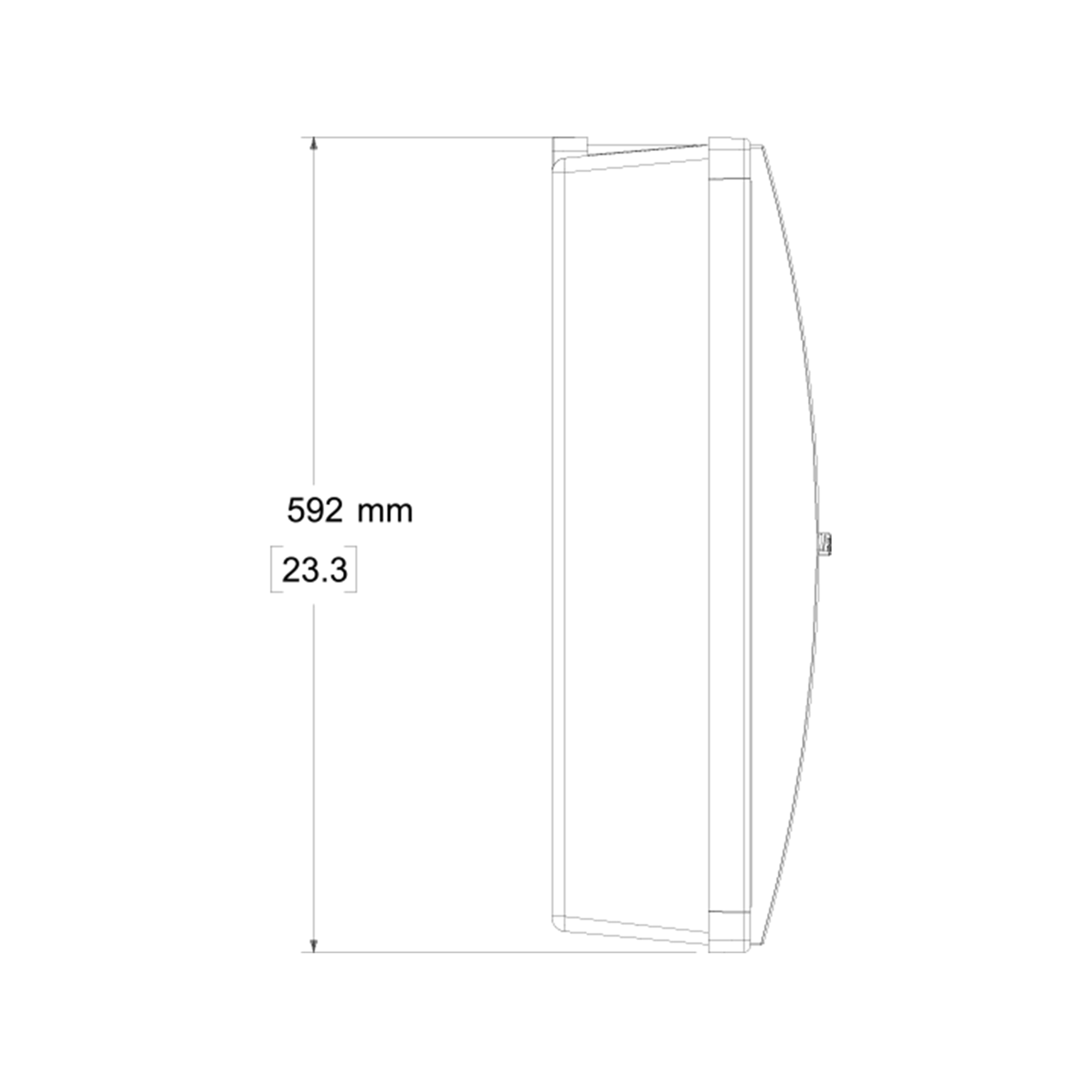

Left View

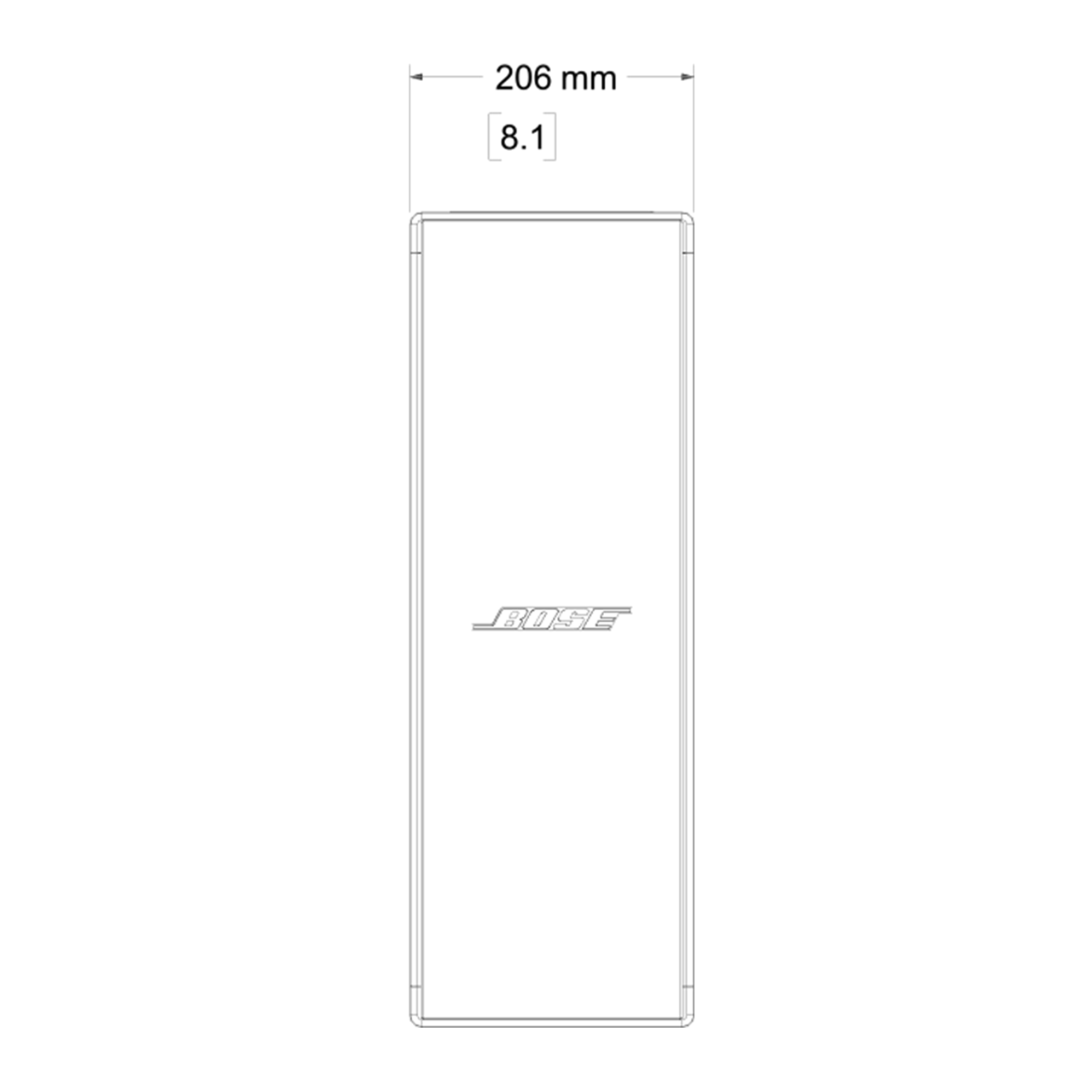

Front View

Bottom View

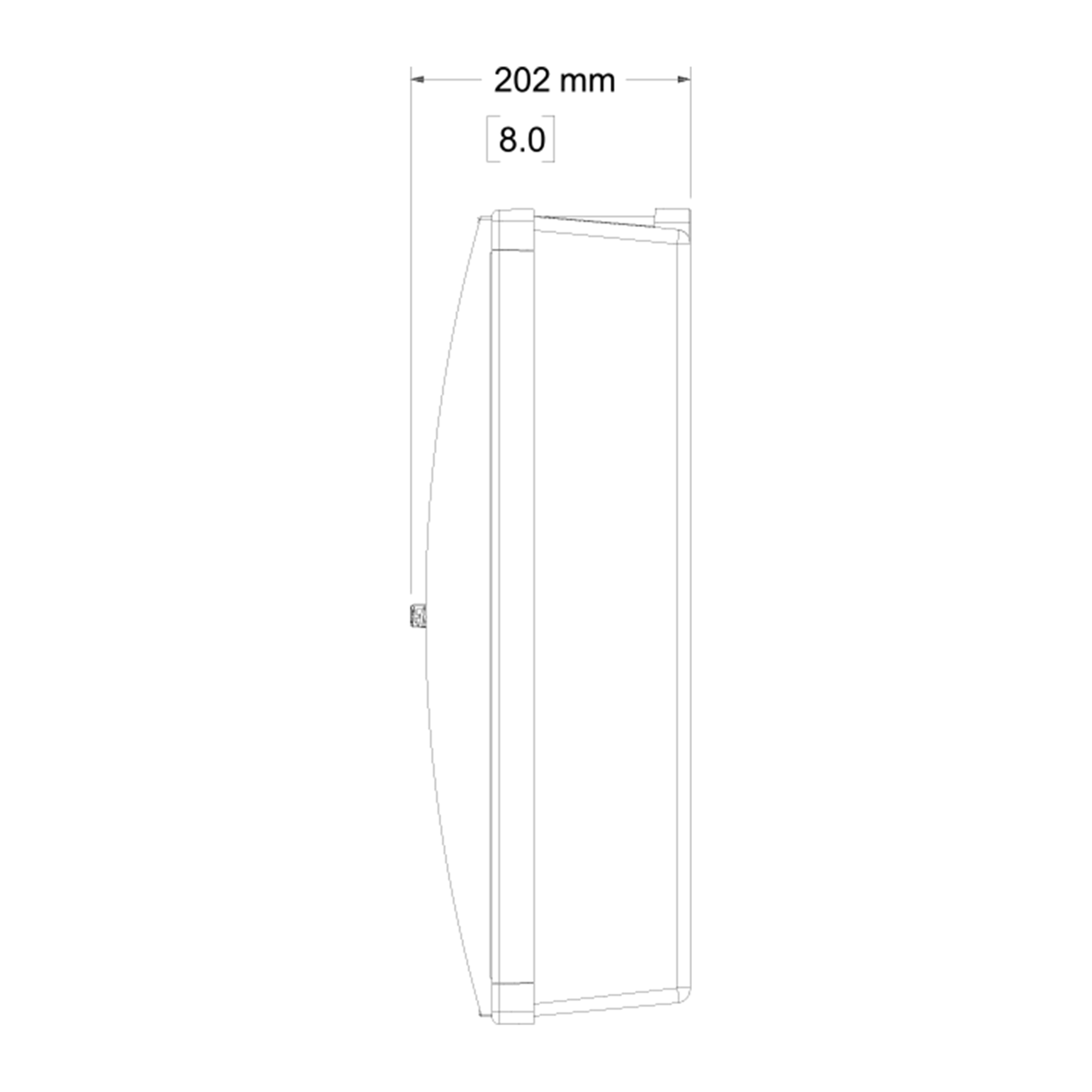

Right View

Back View

Product Codes

Black
739706-0110

White
739706-0210

Downloads

Technical Information

Product Images

Loudspeaker Files

Mechanical Files

Sales Tools

Software:

Accessories

FAQs

How is the Panaray 402 Series IV different from that of the 402 Series II?

The acoustic design and transducers remain unchanged. The enclosure has been updated to change the rear inserts to industry-standard spacing, which accepts the optional accessory Bose RMUBRKT1 pan-and-tilt bracket. Additionally the recommended EQ has been updated to optimize performance for wall and ceiling-mounted installed applications.

Was a Panaray 402 Series III model ever released?

No. The previous model was the 402 Series II loudspeaker. We updated the present 402 model name to align with the new Panaray 802 Series IV model.

Does the Panaray 402 Series IV require active equalization?

Yes. The Panaray 402 Series IV loudspeaker requires active equalization which can be implemented using Bose Professional PowerMatch® amplifiers, Engineered Sound Processors, or SP-24 processors. Additional, generic parametric EQ values are available to use with non-Bose amplifiers and DSP.

What are the advantages of using full-range drivers compared to conventional 2-way, woofer/tweeter systems?

Bose full-range drivers eliminate the need for crossovers and tweeters for unsurpassed reliability in harsh environments and natural vocal clarity. Bose full-range drivers are among the most reliable transducers in the industry, with 99.9% still operating 5 years after the original installation.

What are the advantages of the Articulated Array™ design?

Using full-range drivers allows Bose Panaray loudspeakers to utilize unique driver array placement which provides wide, consistent horizontal coverage, with vertical coverage patterns that differ by model to meet the needs of different applications. The wide horizontal and controlled vertical coverage of the Panaray 402 Series IV loudspeaker – 120° horizontal and 60° vertical – is useful in applications that require smaller vertical coverage patterns.

Why did you update the recommended EQ for the 402 Series IV loudspeaker if the acoustic design did not change?

The recommended EQ for the 402 Series II was optimized for portable, stand-mounted applications. The 402 Series IV EQ is optimized for installations near an acoustic boundary, such as walls or ceilings. The 402 Series II EQ can be used with the 402 Series IV loudspeaker, if desired, with a slight reduction in maximum sound level.

Will the RMUBRKT1 bracket for the 402 Series IV fit older 402 models?

No, the RMUBRKT1 bracket will only fit the 402 Series IV model.

What is the warranty period for Bose Professional loudspeakers?

Bose Professional Systems loudspeakers and electronics are designed to deliver years of superb performance in demanding applications. Warranty details for specific product lines can be found in the Limited Warranty or by contacting your local Bose representative.
