Panaray®  802® Series IV

Panaray 802 Series IV

Recommended retail price

Overview

The Panaray® 802® installed sound-reinforcement loudspeaker features a full-range-driver array, eliminating the need for tweeters and crossovers, to provide unsurpassed reliability and vocal clarity. The Articulated Array® design, with wide 120° x 100° coverage, can reduce the number of required loudspeakers, while the 52-Hz low- frequency range can reduce the need for subwoofers, providing a cost-effective solution for many indoor or outdoor installed sound-reinforcement applications.

Features

Full-Range-Driver Array eliminates tweeters and crossovers for unsurpassed reliability in harsh environments and vocal clarity.

8x Bose 4.5-inch full-range drivers for legendary reliability

120° x 100° Articulated Array® design covers a very wide area, which can reduce the number of loudspeakers required

52 Hz - 15 kHz Frequency Range eliminates need for subwoofers for moderate full-range music levels

123 dB Peak SPL for sound-reinforcement and foreground music

Rugged, lightweight enclosure with threaded inserts for easy installations

Weather-Rated Design for indoor or outdoor installations

Requires Active Equalization

Applications

  • Auditoriums
  • Gymnasiums
  • Restaurants and bars
  • Fitness clubs
  • Theme parks
  • Outdoor event venues

Specs

Technical Summary

Frequency Range (-10 dB)
52 Hz - 15 kHz

Nominal Coverage Pattern (H x V)
120° H x 100° V

Long-Term Power Handling
Bose extended-lifecycle test⁴: 240 W
AES transducer test⁵: 300 W

Power Handling, Peak
Bose extended-lifecycle test⁴: 960 W
AES transducer test⁵: 1200 W

Sensitivity (SPL / 1 W @ 1 m)
92 dB SPL

Calculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 116 dB SPL
AES transducer test⁵: 117 dB

Calculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 122 dB
AES transducer test⁵: 123 dB

Nominal Impedance
8 Ω

Mechanical Diagrams

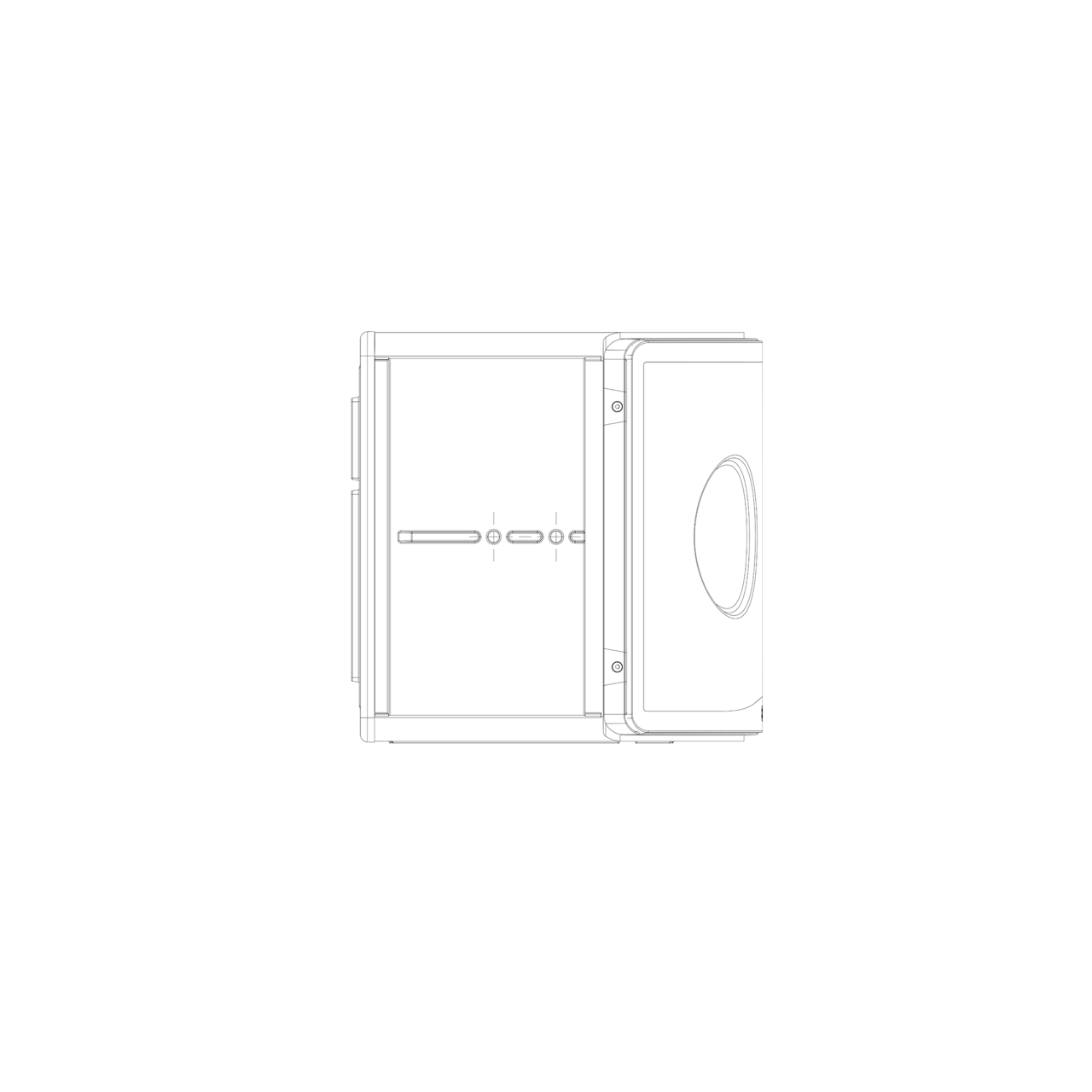

Top View

Left View

Front View

Right View

Rear View

Bottom View

Product Codes

Black
739058-0110

Downloads

Technical Information

Product Images

Loudspeaker Files

Mechanical Files

Sales Tools

Software:

Accessories

FAQs

How is the Panaray 802 Series IV different from that of the 802 Series III?

The acoustic design and transducers remain unchanged. The enclosure has been updated to eliminate the front cover and add two M8 threaded inserts on each side to accept a new optional accessory U-bracket. Additionally the recommended EQ has been updated to optimize performance for wall and ceiling-mounted installed applications.

Does the Panaray 802 Series IV require active equalization?

Yes. Panaray 802 Series IV loudspeakers require active equalization which can be implemented using Bose Professional PowerMatch® amplifiers, Engineered Sound Processors, and SP-24 processors. Additional, generic parametric EQ values are available to use with non-Bose amplifiers and DSP.

Will the front cover from the Panaray 802 Series III fit on the new 802 Series IV enclosure?

No, the 802 Series IV enclosure does not contain features to accept the front cover.

What are the advantages of using full-range drivers compared to conventional 2-way, woofer/tweeter systems?

Bose full-range drivers eliminate the need for crossovers and tweeters for unsurpassed reliability in harsh environments and natural vocal clarity. Bose full-range drivers are among the most reliable transducers in the industry, with 99.9% still operating 5 years after the original installation.

What are the advantages of the Articulated Array™ design?

Using full-range drivers allows Bose Panaray loudspeakers to utilize unique driver array placement which provides wide, consistent horizontal coverage, with vertical coverage patterns that differ by model to meet the needs of different applications. The wide coverage of the Panaray 802 Series IV loudspeaker – 120° horizontal and 100° vertical - is one of the widest coverage patterns available, which can reduce the number of loudspeakers required to cover the listening area.

Will the new accessory U-Bracket for the 802 Series IV fit older 802 models?

No, the new accessory U-Bracket will only fit the new 802 Series IV model.

Why did you update the recommended EQ for the 802 Series IV loudspeaker if the acoustic design did not change?

The recommended EQ for the 802 Series III was optimized for portable, stand-mounted applications. The 802 Series IV EQ is optimized for installations near an acoustic boundary, such as walls or ceilings. The 802 Series III EQ can be used with the 802 Series IV loudspeaker for free-space acoustic conditions with a slight reduction in maximum sound level.

What is the warranty period for Bose Professional loudspeakers?

Bose Professional Systems loudspeakers and electronics are designed to deliver years of superb performance in demanding applications. Warranty details for specific product lines can be found in the Limited Warranty or by contacting your local Bose representative.
