RoomMatch Utility RMU105
RoomMatch®  Utility RMU105

RoomMatch Utility RMU105

Recommended retail price
Current Price
Original Price

Overview

The RoomMatch Utility RMU105 ultra-compact foreground/fill loudspeaker is intended for use in high-quality background/ foreground music and zone-fill applications that require excellent audio, minimal physical size and high design aesthetics. The design features a single Bose® EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. A single 5.25-inch woofer provides vocal-range output, and a 100° x 100° high-frequency horn provides consistent coverage with either vertical or horizontal mounting.

Features

Award-winning RoomMatch sound – now in smaller, 2-way, point-source designs for high-level foreground music, under-balcony, zone-fill and vocal-range floor monitor applications

Bose EMB2 compression driver – for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character compared to that of RoomMatch full-range and other RoomMatch Utility models

Ultra-compact design – allows use for high-quality background/foreground music and zone-fill applications that require excellent audio, minimal physical size, and high design aesthetics

100° x 100° constant-directivity high-frequency horn – gives wide, even coverage, allowing vertical or horizontal mounting with no change in coverage pattern.

1 x Bose LF5 5.25-inch woofer – with 1.5-inch long-excursion voice coil extends response to 90 Hz for lowest vocal range

100 Hz – 16 kHz frequency response and 118 dB maximum peak SPL - deliver the performance required for most demanding applications in an ultra-compact enclosure design

Flexible mounting with included U-bracket – Rear enclosure panel also includes 2 x M6 threaded inserts with 3-inch (75 mm) spacing to accept third-party accessory mounting brackets

Applications

  • Under-balcony and zone fill
  • High-quality foreground music
  • Stage-front fill
  • Vocal-range floor monitor

Specs

Technical Summary

Frequency Response (+/-3 dB)
100 Hz - 16 kHz

Frequency Range (-10 dB)
90 Hz - 16 kHz

Nominal Coverage Pattern (H x V)
100° x 100° (rotatable high-frequency horn)

Power Handling, long-term continuous
Bose extended-lifecycle test⁴: 100 W
AES transducer test⁵: 150 W

Power Handling, Peak
Bose extended-lifecycle test⁴: 400 W
AES transducer test⁵: 600 W

Sensitivity (SPL / 1 W @ 1 m)
Bose extended-lifecycle test⁴: 90 dB
AES transducer test⁵: 90 dB

Calculated Maximum SPL @ 1 m
Bose extended-lifecycle test⁴: 110 dB
AES transducer test⁵: 112 dB

Calculated Maximum SPL @ 1 m, peak
Bose extended-lifecycle test⁴: 116 dB
AES transducer test⁵: 118 dB

Nominal Impedance
8 Ω

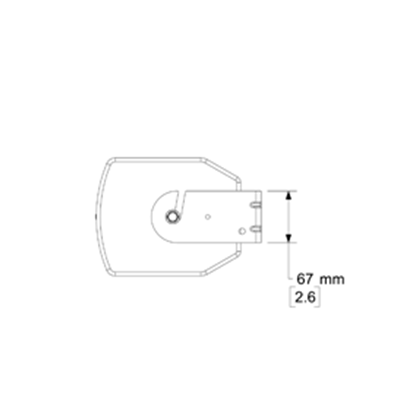

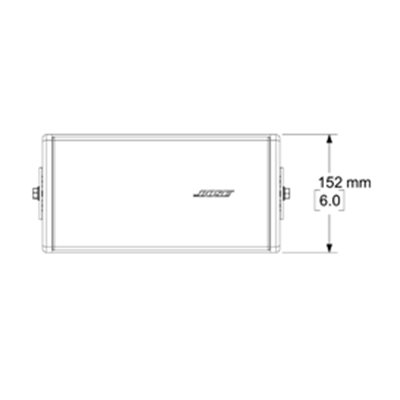

Mechanical Diagrams

Front View

Top View

Side View

Product Codes

Black
638421-0110

White
638421-0210

Downloads

Technical Information

Product Images

Mechanical Files

Sales Tools

Compliance Documents

Loudspeaker Files

Software:

Accessories

Pan-and-tilt bracket
Pan-and-tilt bracket
RMUXF100 70V/100V transformer kit
RMUXF100 70V/100V transformer kit
RMUXF40 — 70V/100V transformer kit
RMUXF40 — 70V/100V transformer kit
