Design View – Adding Objects

Applies to:

  • ControlSpace EX-1280C
  • ControlSpace Designer software

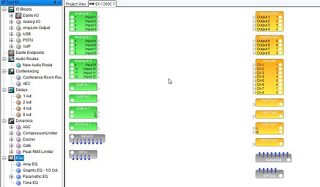

When opening Device View of a DSP for the first time, the Device View will be populated with objects representing the physical connections on the device. These objects can be deleted and replaced as needed and processing objects can be added to program the audio signal flow of the DSP.

Processing objects are selected from the SP Tool Kit on the left side of the screen and placed in the Device View by dragging the object from the SP Tool Kit and dropping it into the Device View. Once the objects have been placed in the Device View, each object can be moved, copied, wired as needed, and deleted if necessary.
