Groups – Adding Gain Objects

Applies to:

  • ControlSpace EX-1280C
  • ControlSpace Designer software

Drag and Drop

Individual objects or multiple objects may be added to a Group by selecting the objects, dragging the objects from the Device View to the Group window, and dropping the object onto the Group. A Group can contain multiple objects from the same device or a combination of objects from multiple devices.

As objects are added to the Group, the objects appear in the expandable list in the Group window.




Context Menu

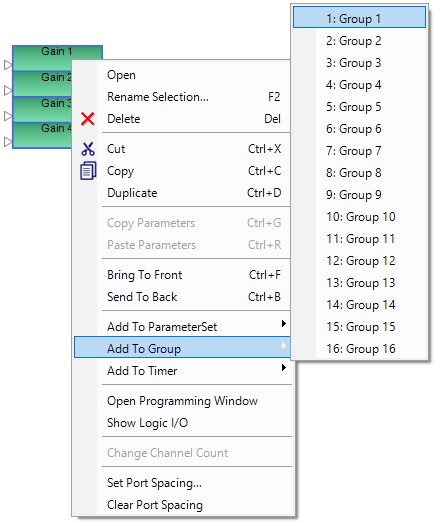

Objects may also be added to a Group, either individually or in multiples, by selecting the objects, right-clicking on one of the objects, selecting Add To Group from the context menu, and then selecting the target Group.
Each of these methods is functionally identical. Either method can be used to add objects to Groups.
