Hardware Manager – Serial Port Settings

Applies to:

  • ControlSpace EX-1280C
  • ControlSpace Designer software

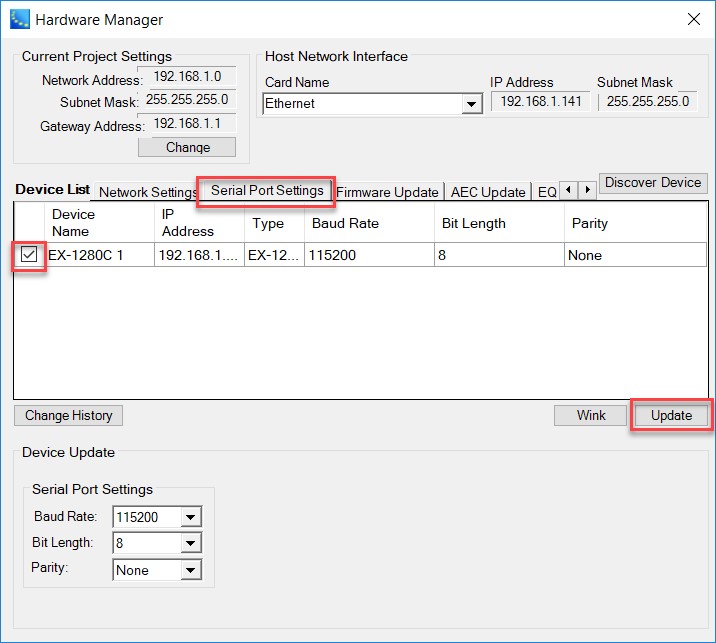

The ControlSpace® Hardware Manager can be used to change the serial port settings for ControlSpace devices. To access these settings, click on the Serial Port Settings tab of the Hardware Manager and select the checkbox next to the device you want to change.

At the bottom of the Hardware Manager, dropdown lists provide access to multiple baud rates, alternate bit lengths, and parity settings.

After making the required changes, click the Update button to send those changes to the device.
