Parameter Sets – Composite Objects

Applies to:

  • ControlSpace Designer software
  • ControlSpace EX-1280C

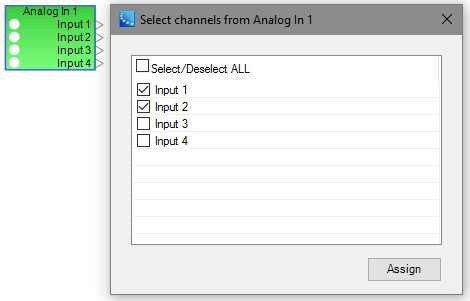

When adding processing objects to Parameter Sets, some multi-channel objects will trigger a dialog box asking which channels should be added to the Parameter Set. These composite objects are actually multiple objects, but they’re represented on screen as a single object in order to provide unified and more organized wiring and control panels.

Examples of composite objects are
•   Analog Inputs/Outputs
•   Dante Inputs/Outputs
•   CobraNet Inputs/Outputs
•   AmpLink Outputs
If two channels of a composite object are selected in the dialog box, only parameters from those two channels will be added to the Parameter Set. If additional channels from the same composite object need to be added to the Parameter Set later, the additional channels may be added individually or in multiples, and will appear in the Parameter Set window as usual.
